Lengthened Right Vertical Milling Head
IK-610L-RV
Plano Milling Head

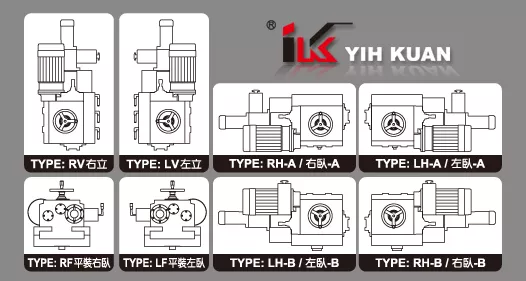

Selection of installing the milling head.
(RV/LV/RH-A/LH-A/RH-B/LH-B)
Plano Milling Head Plano Milling Head Plano Milling Head Plano Milling Head Plano Milling Head Plano Milling Head
- 1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
- 2. It is used for mold manufacturing or precision processing.
- 3. The machine processing for travel is 600 mm. We also provide “No slide” format.
- 4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
- 5. Plano milling head series offer accessory head for you to optional.
- It will apply for multi-angle machining to upgrade efficiency and longer machining range.
- 6. This product of standard motor is 10HP. We also offer 12.5HP/15HP for you to optional.
- 7. Offer pneumatic blade locking device, bearing guide screw, pneumatic leveler for you to optional.
- 8. IK-610L-RV has been applied through the structure patents, patents number are M354483 and M354484.
- 9. There are 10 models in IK Plano Milling Machine Head Series.

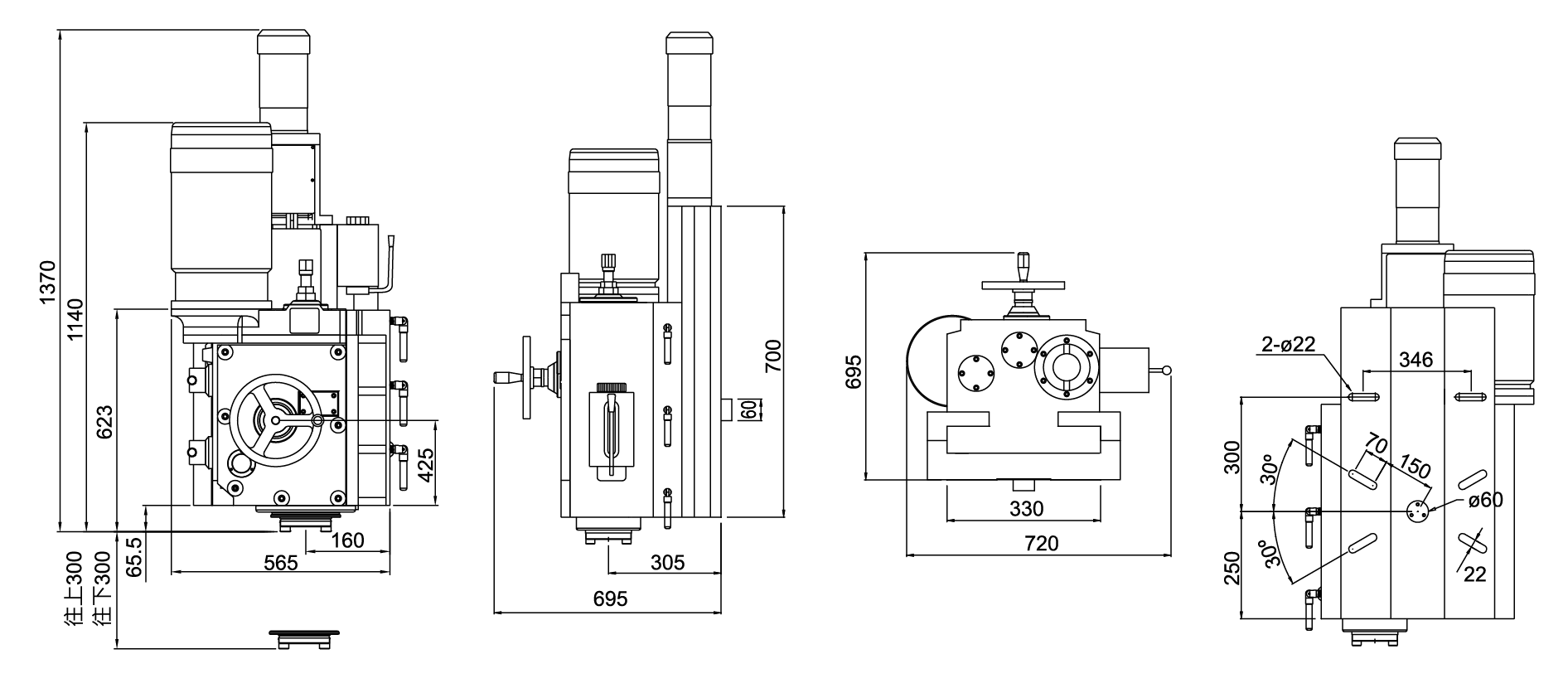

| Model | Unit | IK-610L-RV | ||
|---|---|---|---|---|
| SPINDLE | ||||
| Spindle Bore Diameter | NT50 | |||
| Diameter of Spindle Nose | mm | Φ128.6 | ||
| Spindle Motor (3 Option for Selection) | Hp | 10 (4P) |
12.5 (4P) |
15 (4P) |
| Step of Spindle Speed | stage | 6 | ||
| Spindle Speed (50Hz) | rpm | 88 257 | ||
| 132 355 | ||||
| 173 526 | ||||
| Spindle Speed (60Hz) | rpm | 106 308 | ||
| 158 426 | ||||
| 208 631 | ||||
| WORKING RANGE | ||||
| Max Diameter of Cutter | mm | 200 | ||
| Travel | mm | 600(up 300 /down 300 ) | ||
| Rapid Travel AC Motor | 0.4Kw/0.5Hp AC 3 Phase 4 Poles x 1/40 |
|||
| Rapid Travel Speed | mm/min | 177(50Hz) 218(60Hz) |
||
| Reversal Slide | 2mm/rev →||← 0.01mm |
|||
| STANDARD ACCESSORIES (● INCLUDE IN PRODUCT) | ||||
| Spindle Motor | 10HP/4P | 12.5HP/4P | 15HP/4P | |
| ● | - | - | ||
| - | ● | - | ||
| - | - | ● | ||
| Rapid Travel AC Motor | ● | |||
| OPTIONAL ACCESSORIES (○ APOLEGAMY) | ||||
| Pneumatic Blade Locking Device |
○ | |||
| Bearing Guide Screw | ○ | |||
| Pneumatic Leveler | ○ | |||
| IK-A90 Angular Head | ○ | |||
| IK-D90 Deep Head | ○ | |||
| IK-U90 Universal Head | ○ | |||
| IK-U45 Universal Head | ○ | |||
| Country of Origin | Taiwan | |||
| Weight (Approximate) | kg | 630 | ||
| Warranty | 1 year (non artificial mistake) | |||
