Powerful Right Vertical Milling Head
IK-915-RV
Plano Milling Head
Plano Milling Head Plano Milling Head Plano Milling Head Plano Milling Head Plano Milling Head Plano Milling Head
- 1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
- 2. It is used for mold manufacturing or precision processing.
- 3. The machine processing for travel is 600 mm. We also provide “No slide” format.
- 4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
- 5. Plano milling head series offer accessory head for you to optional.
- It will apply for multi-angle machining to upgrade efficiency and longer machining range.
- 6. This product of standard motor is 15HP. We also offer 20HP for you to optional.
- 7. Offer pneumatic blade locking device, bearing guide screw, pneumatic leveler for you to optional.

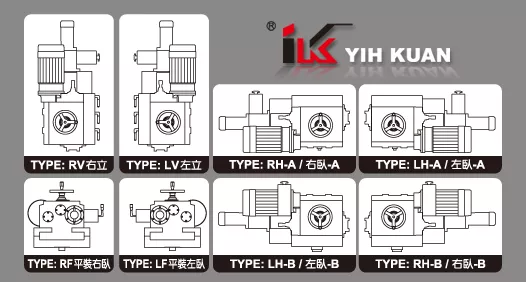

- 8. There are 10 models in IK Plano Milling Machine Head Series.
| Model | Unit | IK-915-RV | |||
|---|---|---|---|---|---|
| SPINDLE | |||||
| Spindle Bore Diameter | NT50 | ||||
| Diameter of Spindle Nose | mm | Φ128.6 | |||
| Spindle Motor (2 Option for Selection) | Hp | 15(4P) | 20(4P) | ||
| Step of Spindle Speed | stage | 9 | |||
| Spindle Speed (50Hz) | rpm | I | II | III | |
| A | 412 | 739 | 554 | ||
| B | 69 | 125 | 94 | ||
| C | 183 | 329 | 246 | ||
| Spindle Speed (60Hz) | rpm | I | II | III | |
| A | 495 | 887 | 665 | ||
| B | 83 | 150 | 113 | ||
| C | 220 | 395 | 296 | ||
| WORKING RANGE | |||||
| Max Diameter of Cutter | mm | 250 | |||
| Travel | mm | 600(up 360 /down 240 ) | |||
| Rapid Travel AC Motor | 0.4Kw/0.5Hp AC 3 Phase 4 Poles x 1/40 |
||||
| Rapid Travel Speed | mm/min | 175(50Hz) 215(60Hz) |
|||
| Reversal Slide | 2.5mm/rev →||← 0.02mm |
||||
| STANDARD ACCESSORIES (● INCLUDE IN PRODUCT) | |||||
| Spindle Motor (12.5HP/15HP) | ● | ||||
| Rapid Travel AC Motor | ● | ||||
| OPTIONAL ACCESSORIES (○ APOLEGAMY) | |||||
| Pneumatic Blade Locking Device |
○ | ||||
| Bearing Guide Screw | ○ | ||||
| Pneumatic Leveler | ○ | ||||
| IK-A90 Angular Head | ○ | ||||
| IK-D90 Deep Head | ○ | ||||
| IK-U90 Universal Head | ○ | ||||
| IK-U45 Universal Head | ○ | ||||
| Country of Origin | Taiwan | ||||
| Weight (Approximate) | kg | 752 | |||
| Warranty | 1 year (non artificial mistake) | ||||
